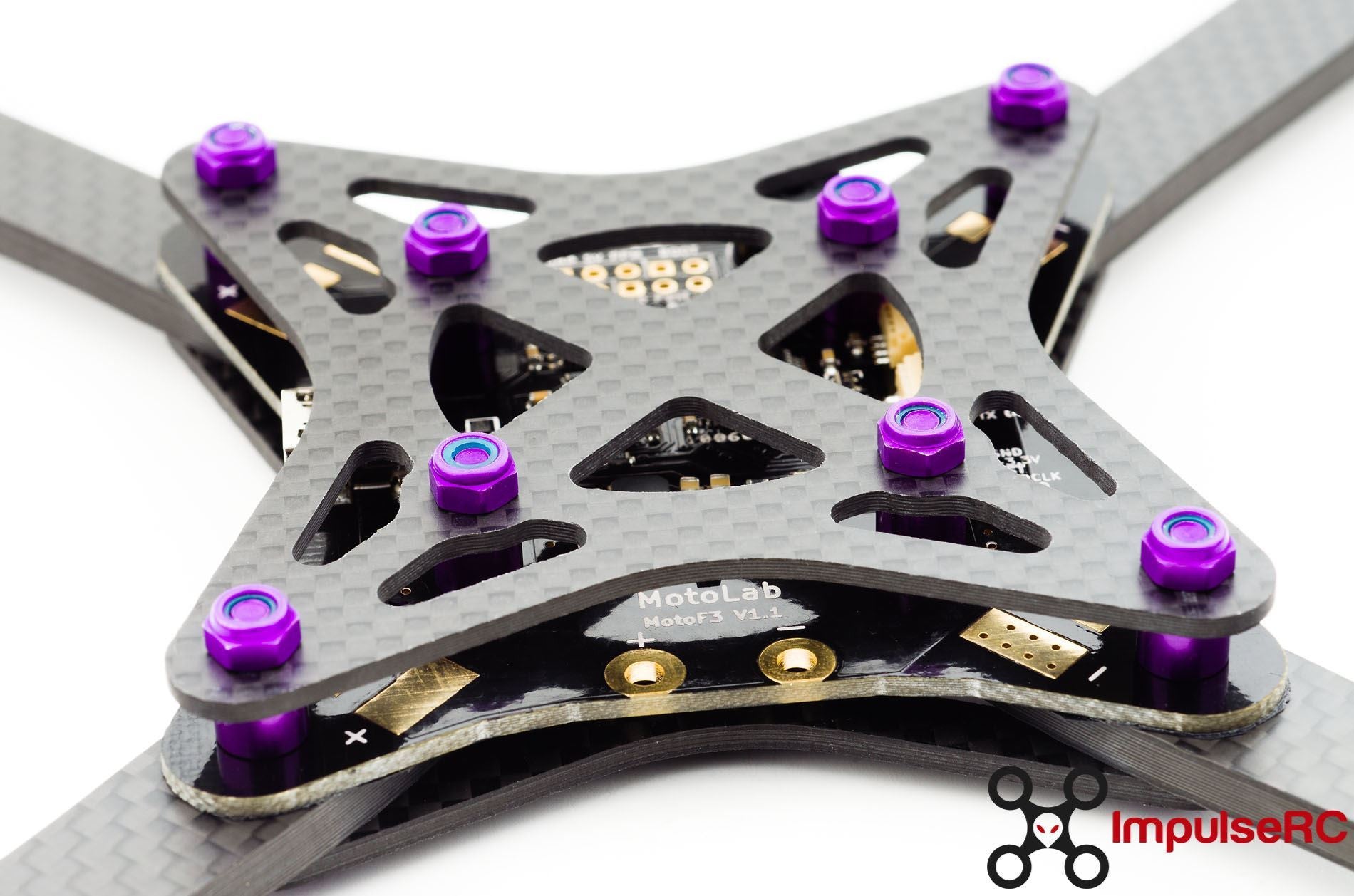

MotoF3 Flight Controller / PDB

MotoF3 Flight Control Board / PDB



Integrated FC / PDB / Centre Frame / 4S - 5V 600mAh Reg (including 3.3V output)

The MotoF3 is an integrated flight controller, power distribution board and frame plate for the Warpquad 200/230/270 frames. The board has a 32-bit STM32F3 CPU with 256K of program flash for compatibility with Cleanflight or Betaflight firmware using the MOTOLAB board target. On-board features include 2Mbyte SPI flash memory for blackbox data logging, audio buzzer, and a 4S compatible switching power supply. Interfaces include PPM, SBUS, Spektrum SAT, and two external UART channels (in addition to the third UART dedicated for SBUS/SAT). The built-in DFU USB device is used to avoid conflict with UART interfaces. Four PWM outputs for motors plus two additional PWM signals for servo passthrough are provided.

The MotoF3 greatly simplifies assembly by eliminating the need for a spider-style wiring harness. The LIPO battery and ESCs all connect directly to the board.

Note: We strongly recommend the "Moto Sammich" style construction for maximum structural integrity, using 18mm bolts and the full Warpquad frame plate a s a top cover.

Also note: The bottom side of the MotoF3 contains the power distribution and is electrically "hot". Proper installation requires use of insulation such as electrical tape between the MotoF3 and the carbon frame parts, else a short-circuit can occur if the solder mask is breached.

 Buzzer is included

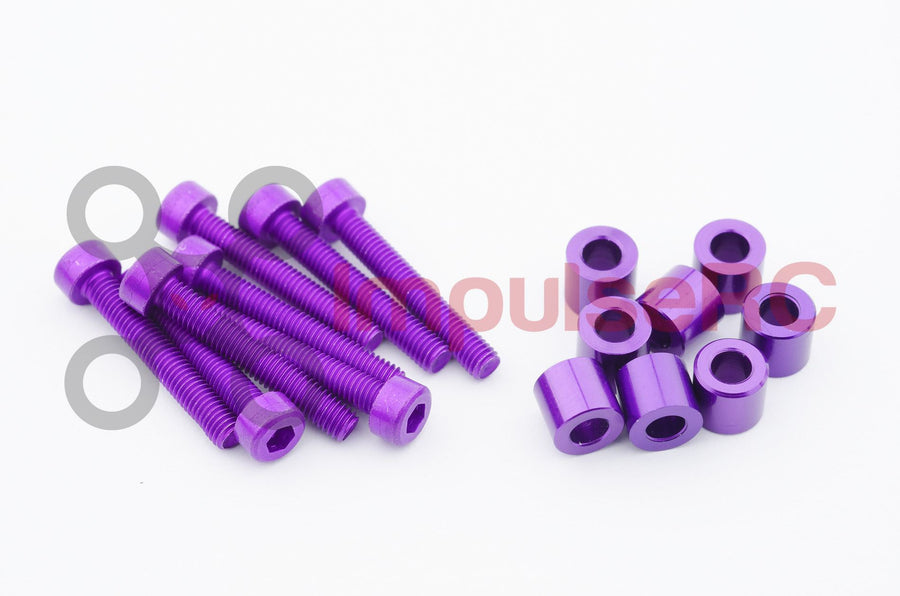

*** Please see the Acro frames section for a dedicated MotoF3 Frame kit, or the hardware section to convert an existing Warpquad ***

*** Please see the accessories section for Spektrum satelite rx connectors and serial leads ***

*** Recommended for up to 20A ESCs and 4S ***



For support and info please see Moto's information post... (Updated soon)

http://www.rcgroups.com/forums/showpost.php?p=28508139&postcount=3



For tempory info on building requirements for the Warpquad frames, please see here...

http://www.rcgroups.com/forums/showpost.php?p=33286578&postcount=15203
