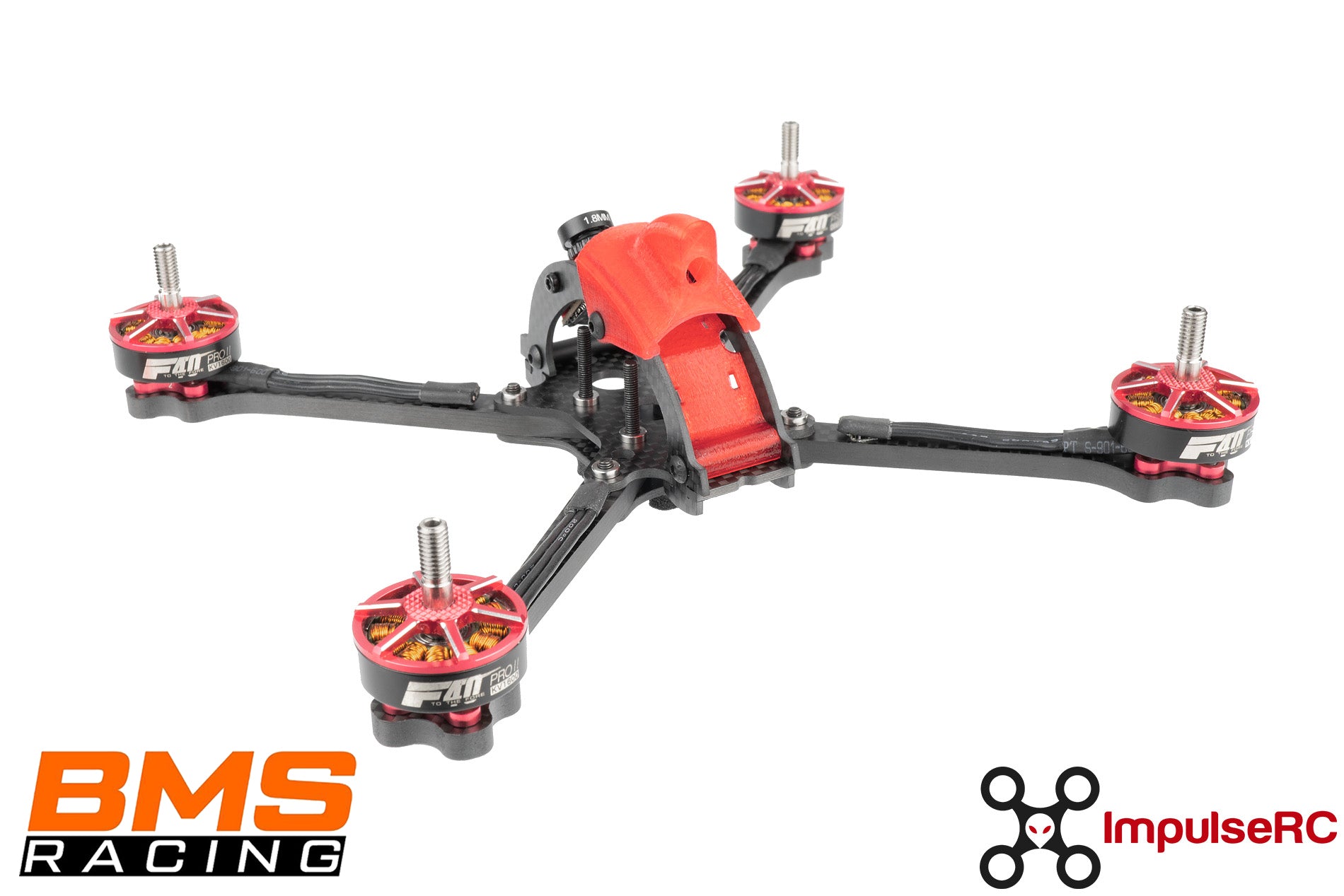

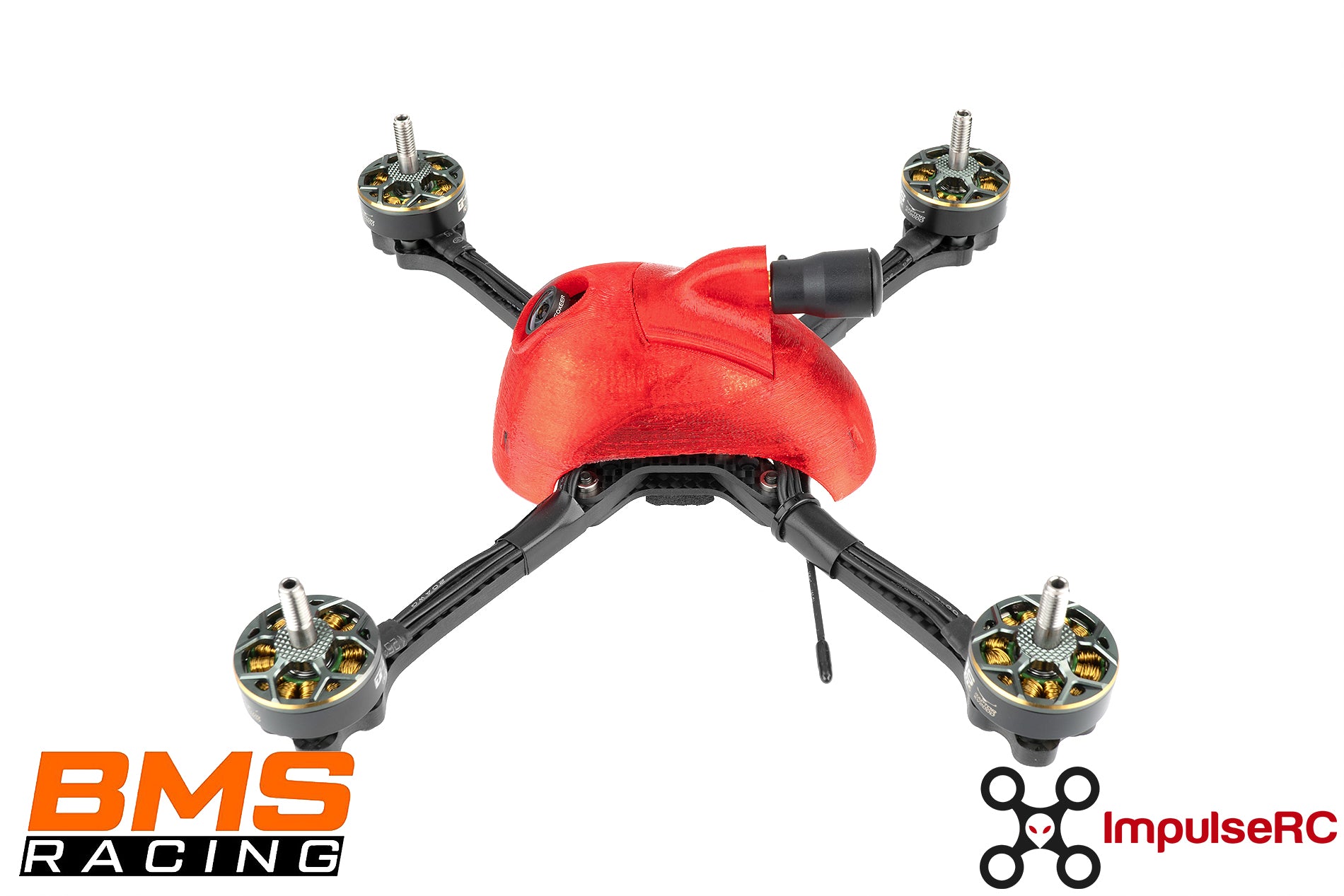

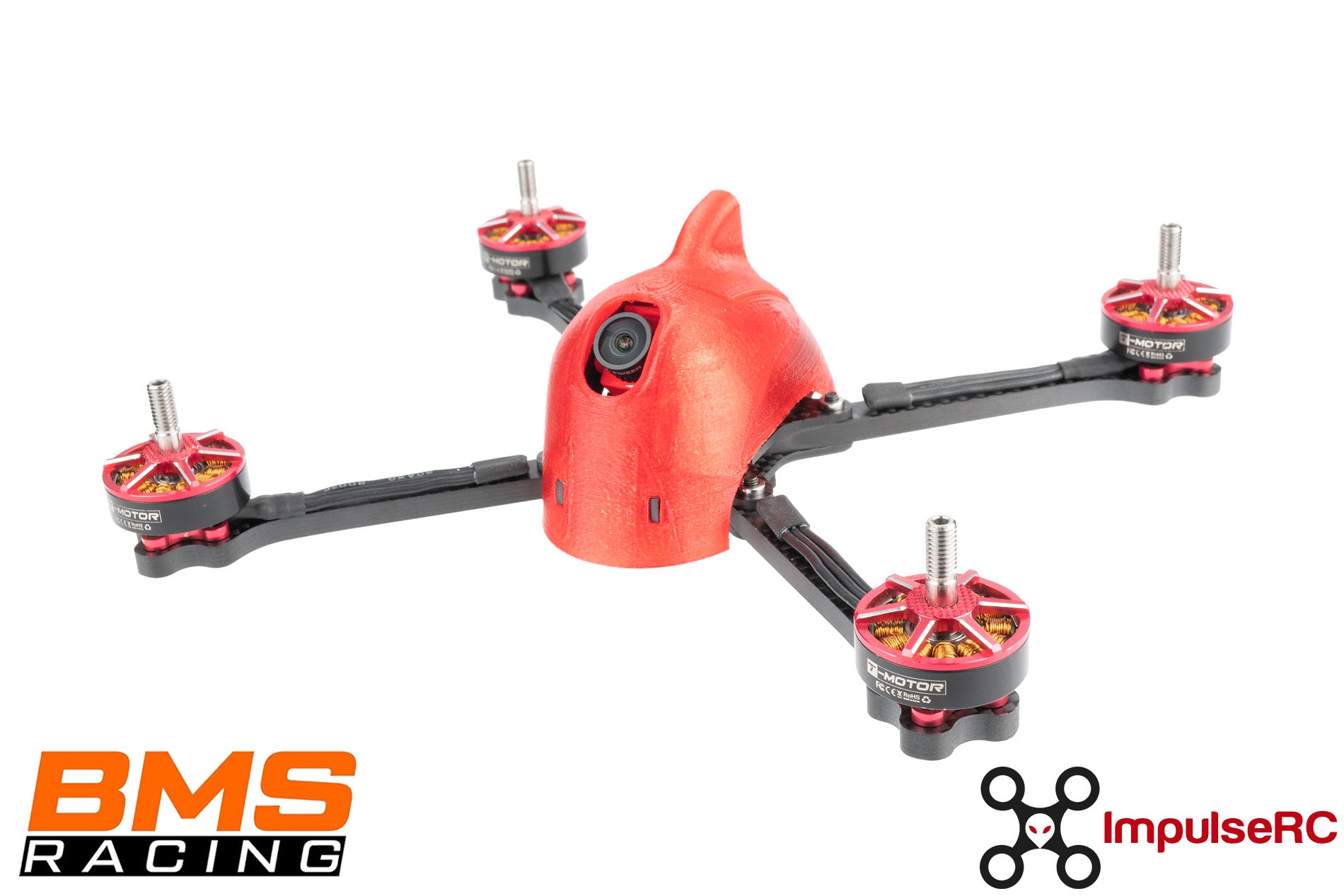

BMSRacing JS-1 Race Frame

When one of the hands down fastest pilots on the planet opens the CAD software to draw his own frame from scratch you should start paying attention. The JS1 has already clocked up 80+ official race wins in the last 3 months of testing, no other race frame can make that claim before it is even released!

Paul and Thomas Bitmatta are legends in the very top tier of the international racing scene. They have poured all of their years of experience, flying and winning races at the highest level all around the planet, in to designing this frame to perfectly meet their needs.

The amount of thought they have put in to the performance, maintenance and usability of this frame is stunning. Check out the build video below for a full explanation of the details.

100% designed by BMSRacing
100% manufactured by ImpulseRC

Features

• Quick Release Pod (No Tools Required)
• Electronics protected from Prop Strikes

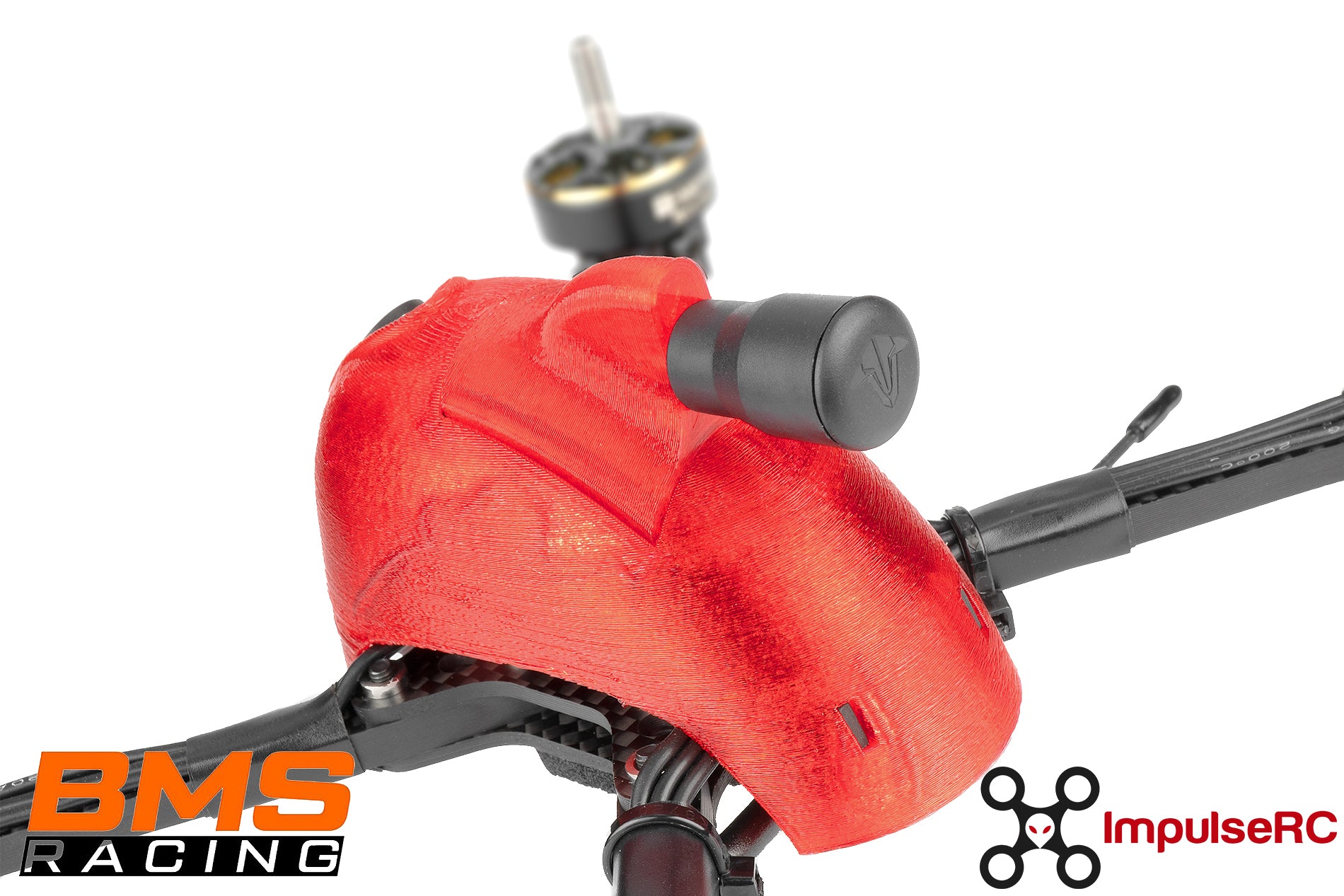

• Quick Swap SMA Antenna Change for LH & RH polarization
• Dedicated ESC capacitor mounting
• Comms-Deck for VTX and RX

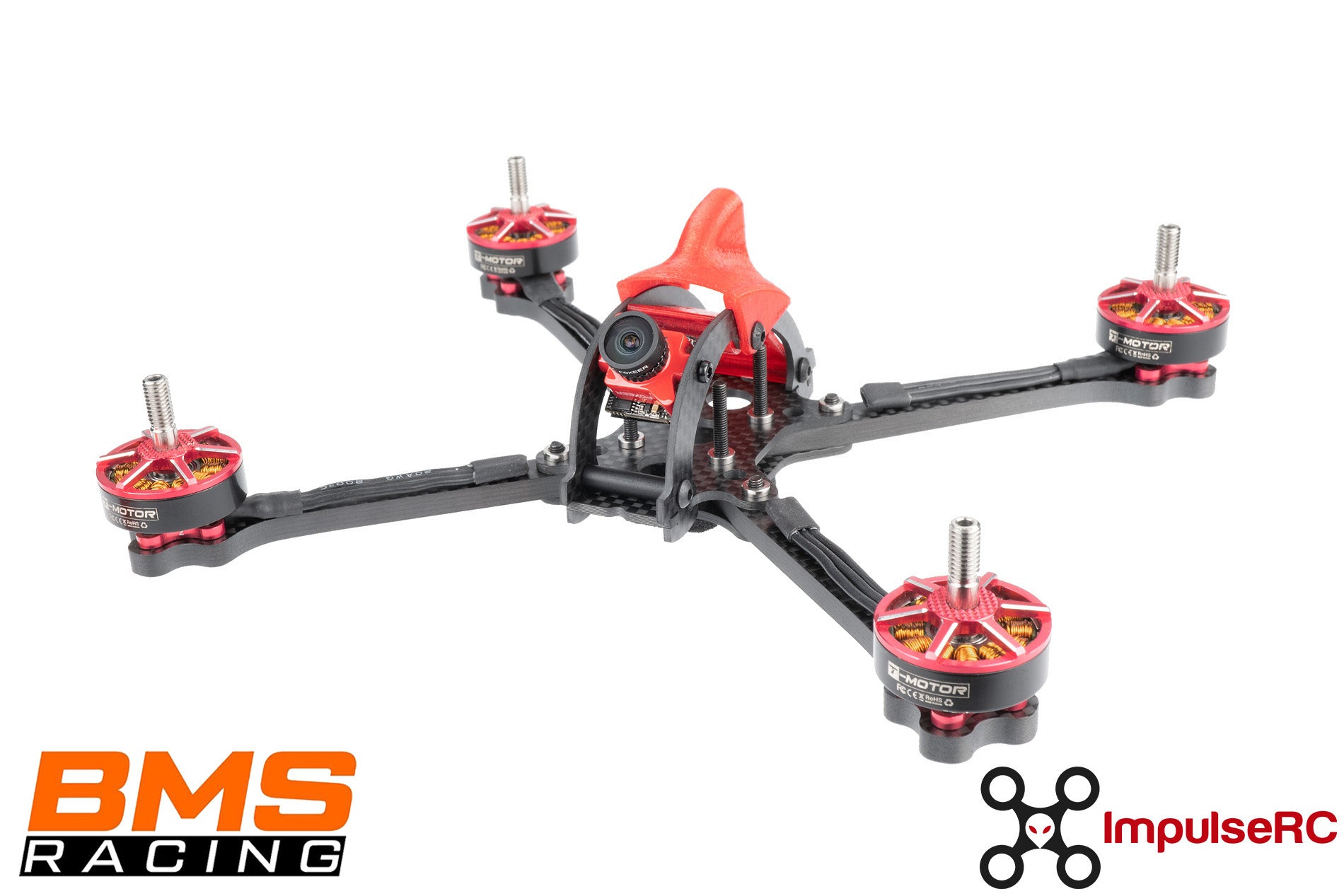

• Micro camera support
• 2 Dedicated Mounting Bays for LED Controllers etc

Major Races Before Release

• 1st MultiGP International Open World Cup 2019 USA
• 1st FPVR Aussie Open 2019 Race (TQ)
• 1st FPVR Aussie Open 2019 Timetrial (TQ)
• 1st Australian International Airshow Open (TQ)
• 2nd MultiGP Starmach Pan Asian Drone Racing Exhibition 2019

BMSThomas Recommended Parts

• ESC: Foxeer Reaper 45A
• FC: Foxeer F722 Mini Pro
• Motors: BMS Raptor V2
• Prop: HQProp R42
• Camera: Foxeer Predator Micro (1.7mm lens)
• VTX: TBS Unify Pro32 Nano
• RX: TBS Tracer Nano
• Antennas:  TBS Triumph Pro + Immortal-T

The JS-1 is built around the TBS Nano VTXs and the TBS micro receiver.
For ESC anything that fits in a 37mmx48mmx7mm box will fit in the stock pod. If you can find a reliable 20x20 stack you should be able to take advantages of this frames future capabilities, since 20x20 was its original design intent.

Built in standard configuration the frame has 4 module bays for equipment such as VTX, RX, LED controller or whatever else you might want to equip for a race. There are two on top which are 19mmx16mm (11mmx16mm with cable ties) and 19mmx25mm (11mmx25mm with cable ties) which are intended for the VTX and RX.

There are two module bays underside which are 19mmx16mm. The Crossfire antenna uses one of the these and leave the other one open for a RGB Led controller. There is also an additional space frontside under the FPV cam you can mount a capacitor if this is the desired location.

If any custom mounting of parts needs to be done outside of design specifications there are 2 holes for M3 pressnuts 57mm apart lengthways that can be used for attachments or custom pods etc.

Frame Weight

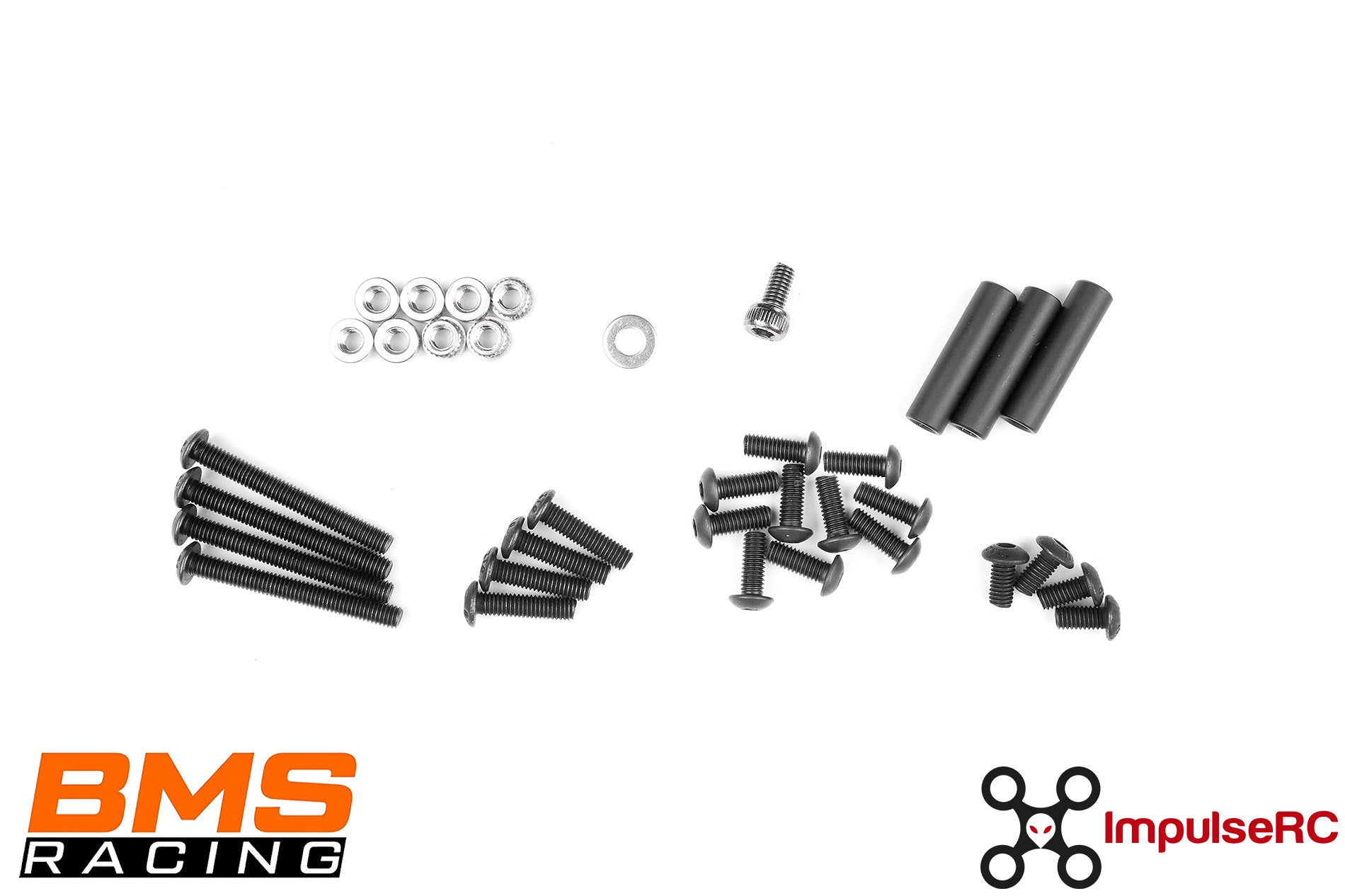

Carbon + Hardware: 58g

TPU Parts: 16g
